Security Groups

Show slides

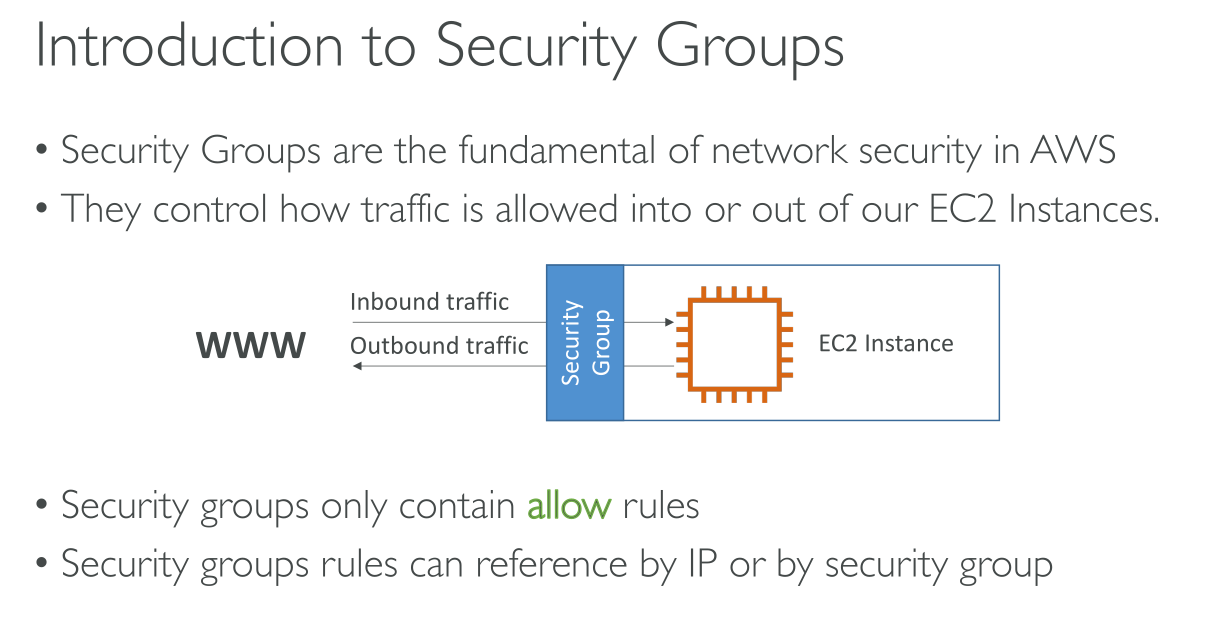

c03 ec2 security groups 1

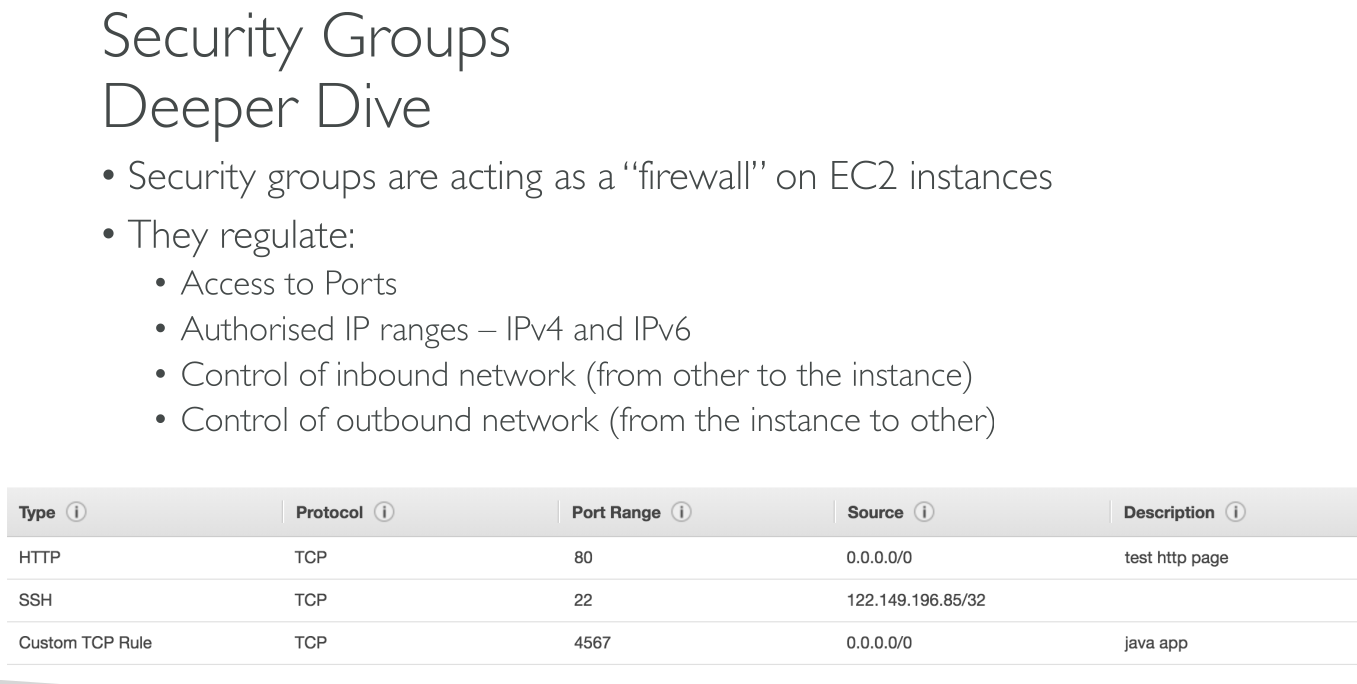

c03 ec2 security groups 2

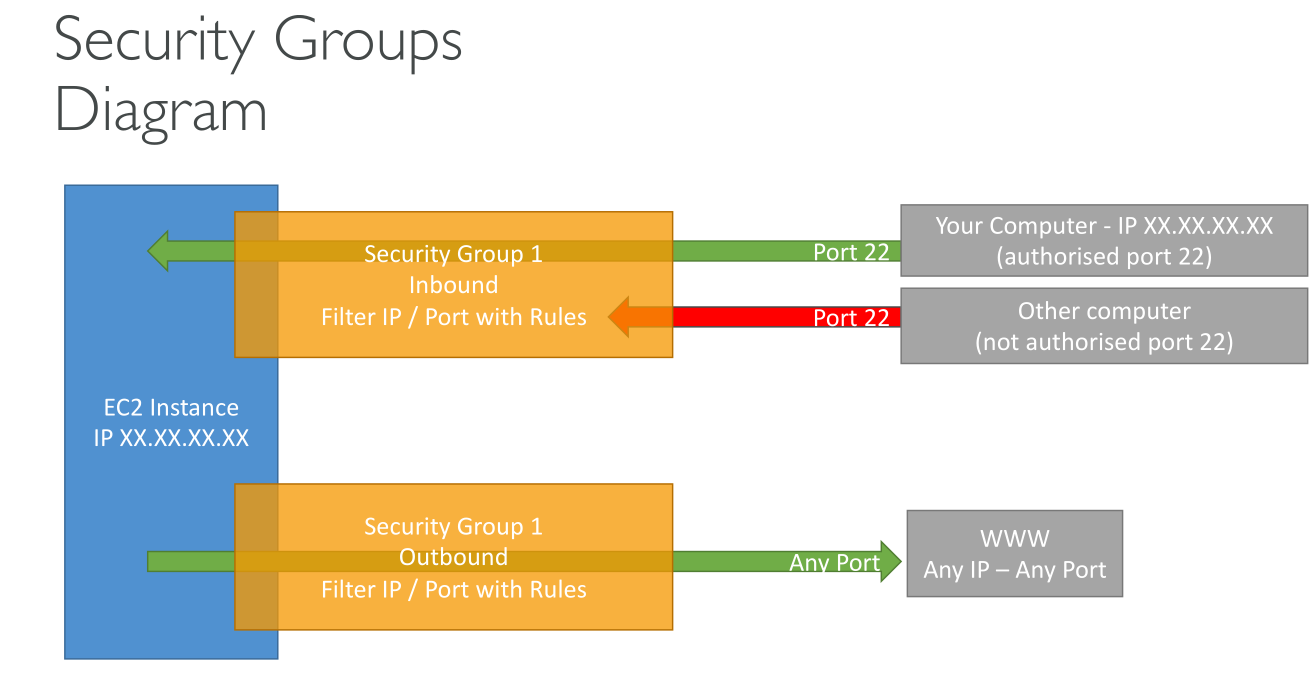

c03 ec2 security groups 3

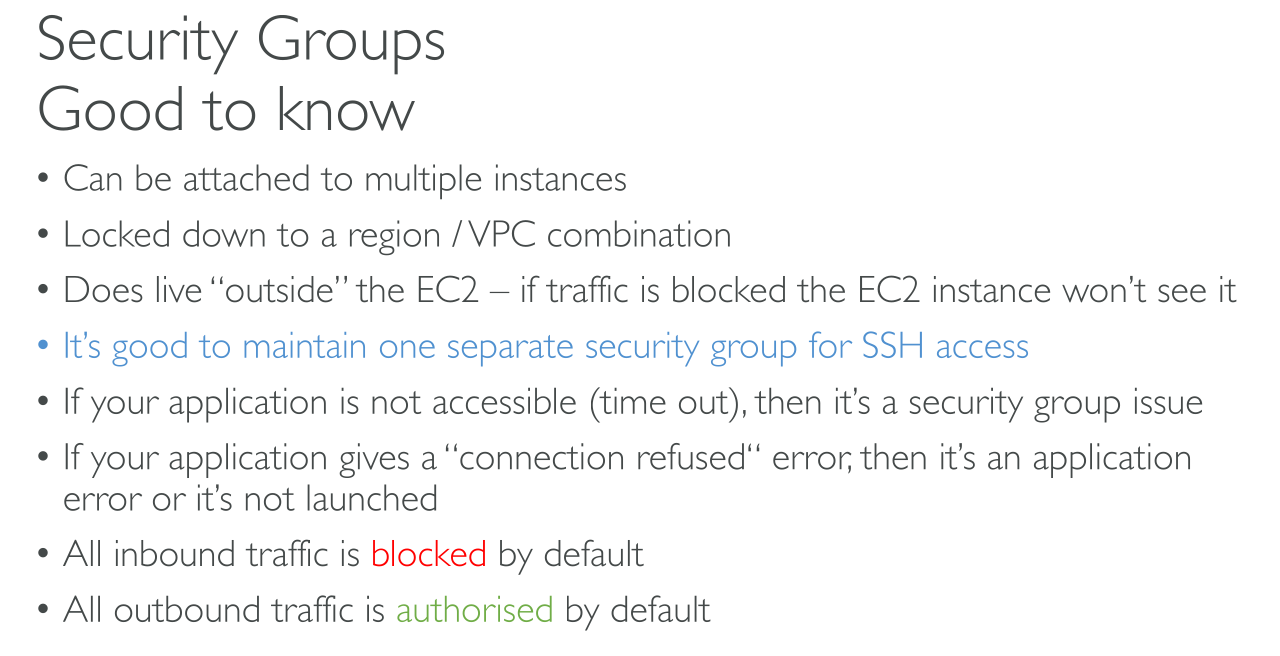

c03 ec2 security groups 4

c03 ec2 security groups 5


Security groups are ALLOW ONLY!

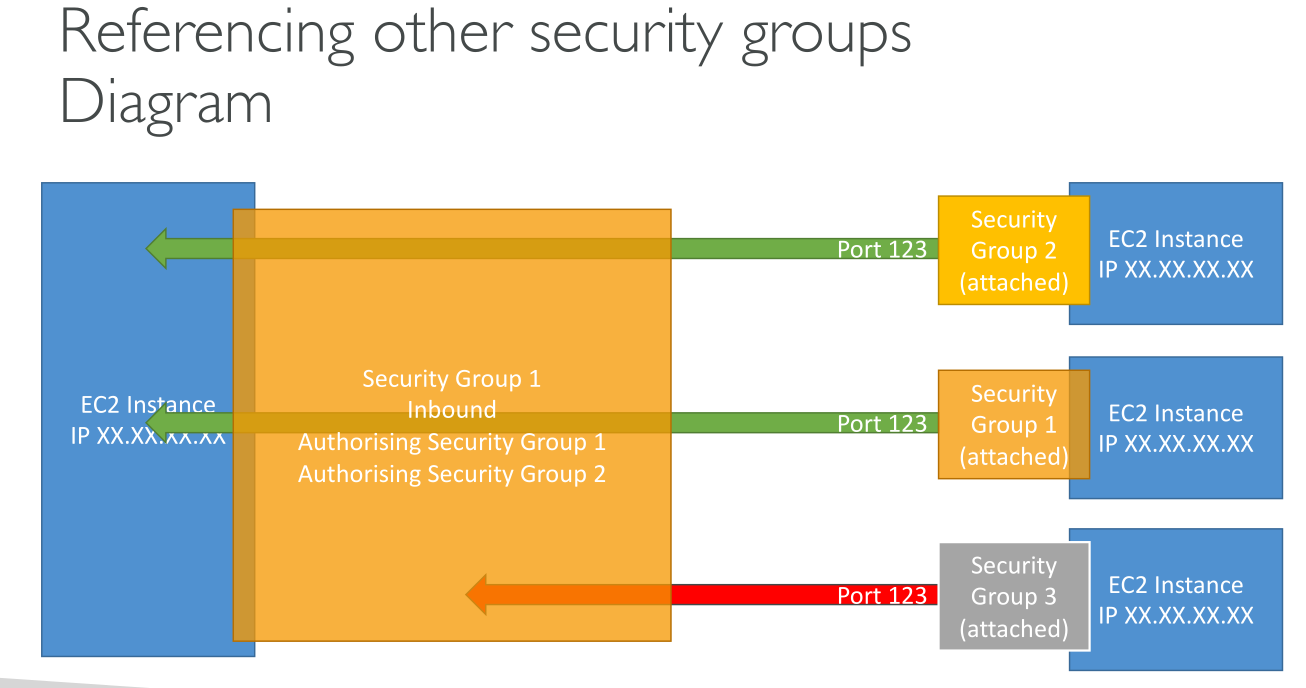

Security groups CAN ALLOW OTHER SECURITY GROUPS AS IDENTITIES FOR OTHER RESOURCES!

Default rules

  • Allows inbound only from a self-reference for all traffic: whoever is associated with it can connect to with others associated with it.

  • Allows all outbound traffic

Security group connection tracking
